Sawdust dryer

Sawdust Dryer

Highly automatic, productive capacity is large, continuous operation

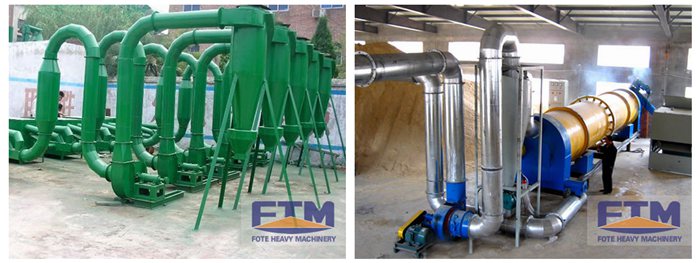

Sawdust dryer

Processing capacity:2.5-50 t/h

Application area: industries of wood, slag, sand, construction materials, metallurgy, chemical engineering, coal, minerals, etc.

Applied materials: sawdust, wood chips, wood shavings, clay, limestone, ardealite, dry-mixed mortar, grain slag, coal slime, etc.

straw sawdust wood shavings maize straw
More Material

Free download Product informationSawdust Dryer(2.00M)

Overview

Sawdust dryer is also known as wood shavings dryer or woodchip dryer. Woodchip dryer is designed for wood chips, sawdust, and other materials. It has the characteristics like large capacity, remarkable energy saving, low maintenance and so on. And the main working principle is the wood chips go into wood chip dryer and under the effect of injection tube and rotating cylinder effects, the materials boil and fluidfly in the cylinder. The hot-blast makes full contact with the material to complete drying.

Fote Machinery is a famous sawdust dryer manufacturer. The products made in Fote have received warmly welcome by the world-wide customers. The woodchip dryer price is quite reasonable and the quality is guaranteed. You can send an e-mail or leave a message to get more information about the machine. We are looking forward to your cooperation. And we’ll always at your service.

Features

Applied Materials:

Sawdust drying machine is widely used in straw fuel, mechanical, wood pellets, sawdust briquette charcoal, agricultural engineering and other industries to conduct stalk drying, drying of soybean straw and cotton stalk drying, drying of wheat straw and sorghum stalk drying, drying sawdust, wood shavings, gingko leaf drying, and drying of agricultural cellulosic materials.

Instruction of Installation:

1. Equipment should be installed on a horizontal concrete foundation, using anchor bolts.

2. Pay attention to the host body perpendicular to the level.

3. After the installation, check for whether there are loose parts bolted or host doors are fastened,

4. Supply line and the control switch according to device's power.

5. After finish checking, conduct no load test. If test is qualified, it can be used to make production.

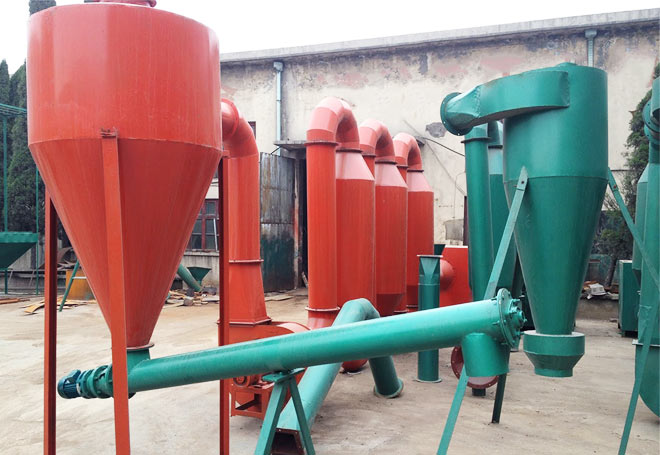

Sawdust dryer

Advantages of Sawdust dryer:

1. Highly automatic, productive capacity is large, continuous operation.

2. The structure is good, simple processes, materials through the resistance of cylinder running smooth, and easy to operate.

3. Good uniformity of drying products.

4. Special scattering device ensures the dryer's drying effect.

5. Good sealing performance to ensure heat preservation. And it has the perfect dust removal device, no dust spills.

Parameter

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
