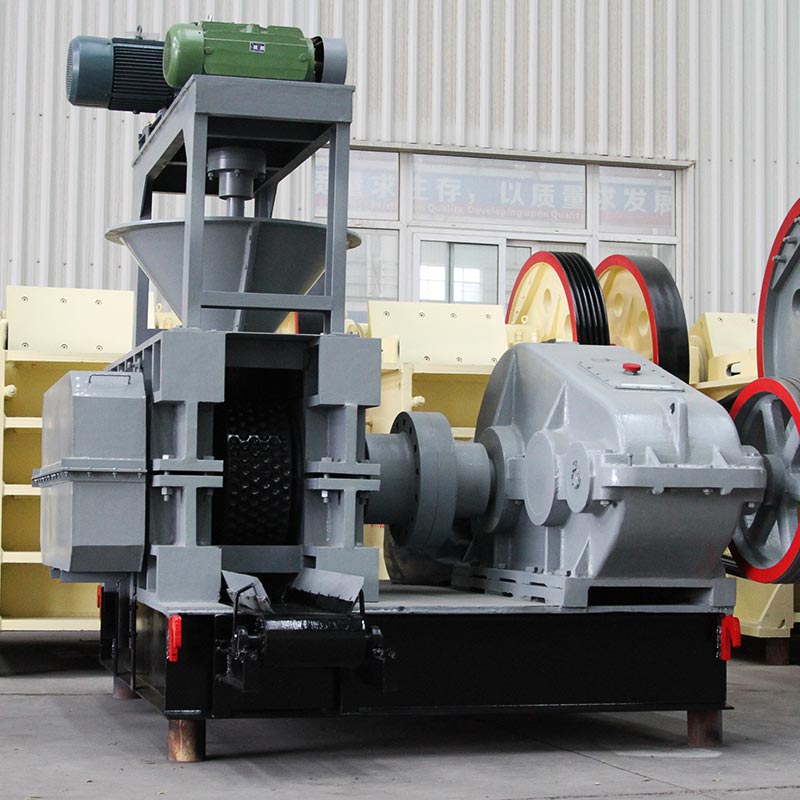

Briquette Machine

Briquette Machine

Particle size should be 90-260 mesh
Briquette Machine

Free download Product informationBriquette Machine(1.68M)

Motor power:5.5-75 (kw)

Theoretical yield:2-28(t/h)

Applied materials: Pulverized coal, coking coal, iron powder, aluminum powder, scrap iron, graphite, clay, kaolin, desulfurization gypsum, cryolite, chemical fertilizer, limestone, carbon powder, activated carbon, coke powder, tailings, slag, sludge, etc.

pulverized coal baring powder coal
More Material

Overview

General Introduction:

Briquette machine is also called briquetting press machine, briquetting making machine or pressure ball machine. Briquette machine is with advanced technology and reliable quality. It is suitable for large, medium and small enterprises to establish a certain production scale of production lines. And it is suitable for industrial gas, boiler, cold pressing type focus, briquette,briquette for civilian use, civilian ignition of metallurgy, refractory materials, medicines and other materials. Strong pressure ball machine after years of industrial use and improvement, compared with other similar products, pressure the ball machine high success rate, small power consumption, compact structure, convenience of maintenance.

Applied Materials:

Pressure ball machine can used to suppress various powder, powder material, waste, and residue like coal powder, iron powder, coking coal, Aluminum powder, iron, iron oxide skin, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke breeze and so on. Briquetting press machine is widely applied in resistance material, power plant, metallurgical, chemical, energy, transport, and heating and other industries.

Briquette Machine

Features

Industrial Requiements:

1. Particle size should be 90-260 mesh

2. The material is not permitted in any metal object. Otherwise it will damage the roller surface.

3. Feeding must be enough. Speed-adjustable spiral conveyor is preferred. Observe feeding quantity to adjust new supply.

4. Before the feeding, the machine must operate with no load for couple of weeks. In case the pressure the ball machine ate too much, cause overload to the reducer and motor which can break the spherical pressure roller.

Structure of Briquetting Press Machine:

Briquetting press machine is composed of feeding part, conveying part and shaping part.

1. Feeding part is mainly to make feeding in certain quantity to ensure the material into the roller evenly.

2. Conveying part is mainly composed of engine, triangle strip, speed reducer, open gear and roller.

3. Shaping part refers to the engine part whose core is roll.

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
