High pressure briquetting machine

High Pressure Briquetting Machine

Pulverized coal, coking coal, iron powder,desulfurization gypsum, cryolite,sludge, etc
High pressure briquetting machine

Theoretical yield:2-28(t/h)

Weight:0.7-13 t

Motor power:5.5-75 (kw)

Technological Features:Pulverized coal, coking coal, iron powder,desulfurization gypsum, cryolite,sludge, etc.

pulverized coal pulverized coal
More Material

Free download Product informationHigh Pressure Briquetting Machine(1.11M)

Overview

The high pressure briquetting machine or the high pressure ball press machine is used to press many kinds of materials such as gypsum, coal powder, mineral powder, scale cinder, slag, fine iron powder and aluminum ash etc. As a leading desulphurization gypsum ball pressing machine supplier in China, our company’s high pressure briquetting machine as well as the hydraulic briquette machine can make large ball blanks by adding compelling pressure and re-pressing spiral precision machining. It is widely applied in the industries of metallurgy, chemical engineering, coal and refractory matter.

balls made by high pressure briquetting machine

Features

1. The hydraulic protection device as the self-protective apparatus presses the high pressure oil into the hydraulic cylinder through the pump, which forces the piston to do axial displacement.

2. The pressure of the machine can be adjusted according to balls’ density and it realizes the flexible production.

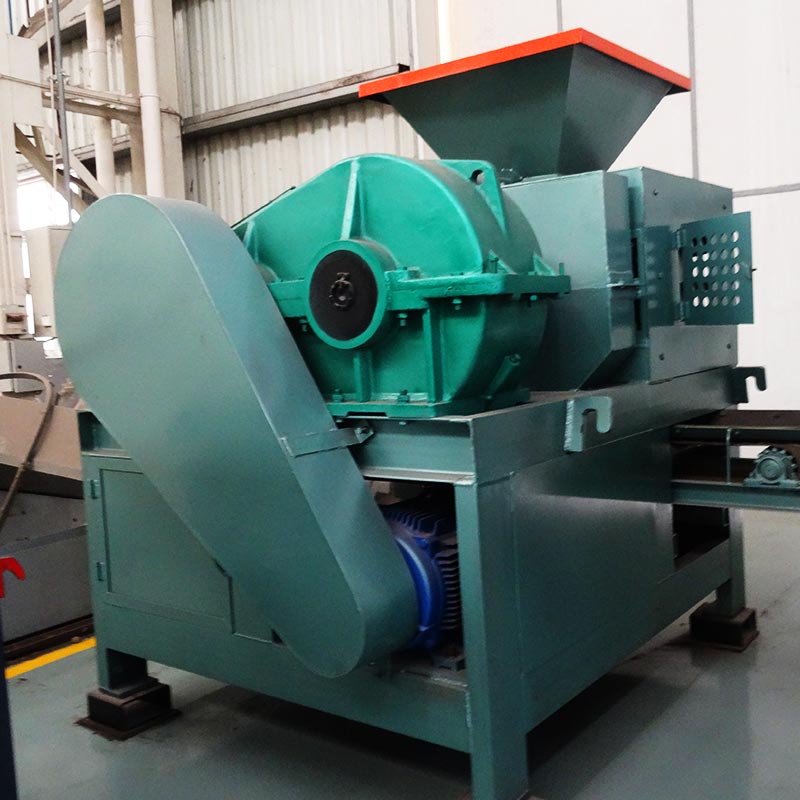

High pressure briquetting machine

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
