Agitation tank

Agitation Tank

Suitable for ore beneficiation industry as well as chemical industries
Agitation tank

Capacity: 0.26–30m³

Effective cubage: 0.26-30m³

Depth:750-3500mm

Applied Fields:Materials mixing in ore processing plant, building materials, road, railway, etc.

raw ore of cementconcrete aggregate raw ore of concrete concrete aggregate
More Material

Free download Product informationAgitation Tank(No File)

Overview

Agitation tank is also known as stirring tank. Agitation tank is suitable for a variety of metal ores and mainly used for mixing before flotation to make the pulp thoroughly mix with pharmacy. Also, the agitation tank can be used for mixing other non-metallic minerals.

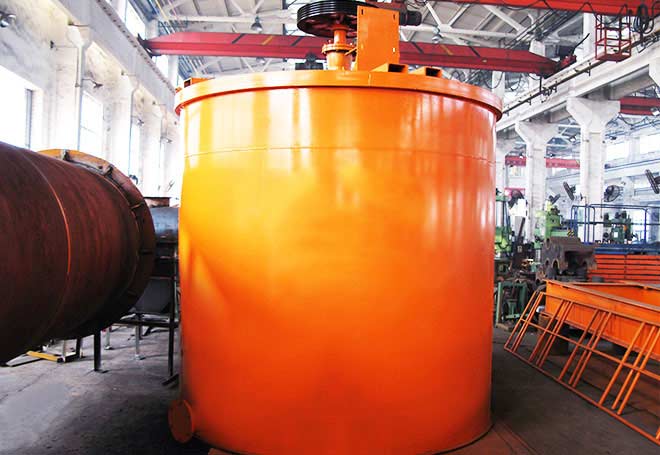

Agitation tank

Fote is a mineral agitation tank manufacturer with high reputation. The products made in Fote are very popular in mining machinery market. The agitation tank price is reasonable and the service is perfect.

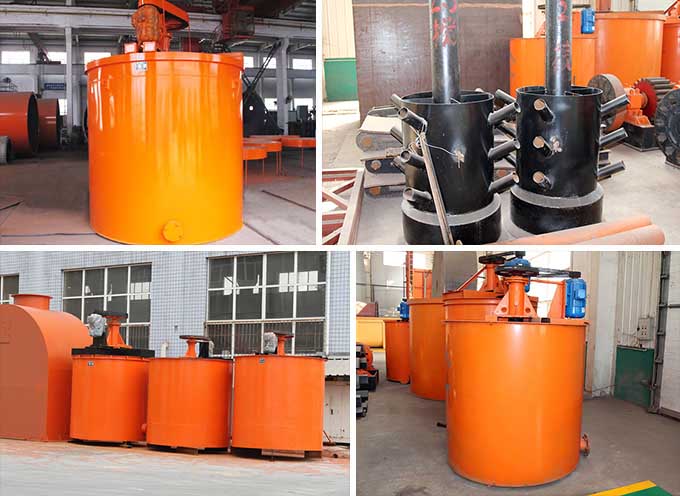

Agitation tank

Features

1. Compact structure, good sealing.

2. Stir uniformly, leave-shaped stir fan ensures a large area of contact with the media;

3. Rows of nozzle settings, and adjust the amount of water evenly.

4. Leftover ash is low, the box at the bottom of the watershed to ensure no dead inside the equipment.

5. Advanced technology, stable product quality.

Parameter

Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500
