Bentonite dryer

Bentonite Dryer

Suitable to dry coal, coke, aluminum, iron, iron oxide skin, toner, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke, powder, scrap, waste
Bentonite dryer

Processing capacity: 2-30 t/h

Application area: refractories, power plants, metallurgy, chemical industry, energy, transportation, heating.

Applied materials: coal, coke, aluminum, iron, iron oxide skin, toner, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke, powder, scrap, waste.

kaoline bentonite kieselguhr clay
More Material

Free download Product informationBentonite Dryer(1.04M)

Overview

The bentonite dryer together with the flue gas desulfurization gypsum powder dryer and kaolin dryer is used to dry granular materials. But it can also dry sticky, paste type materials or high water content materials by adding some materials. The two end covers of the bentonite dryer’s main engine is strongly sealed, which makes it energy saving and green and only consumes 30% of the power and 50% of the coal compared with the similar products. The dried materials’ indexes all excess the national standard.

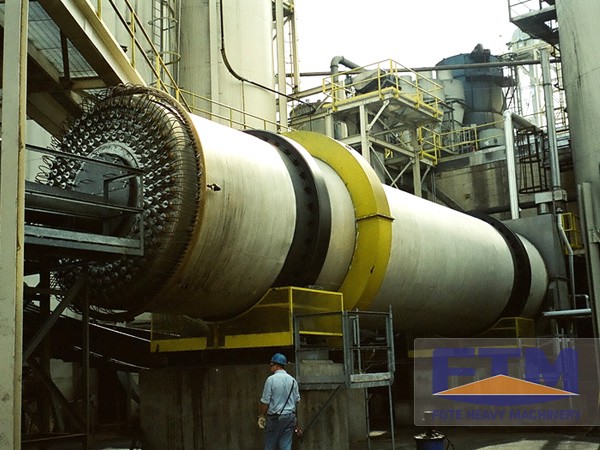

The bentonite dryer machine or the bentonite drying machine/equipment is made up of the drum device, front and back ring wheels, feeding in and out devices, transmission engine and gear cover. It is applied to dry many materials such as kaolin, bentonite, cement, mine and grain.

Features

1. High handling capacity, low fuel consumption and operating cost.

2. High temperature resistance; dry materials quickly by using the high temperature hot blast.

Bentonite dryer

3. The extensible property has been considered when designing the production margin.

4. The power consumption and parts wear have been reduced at the greatest extent.

5. The strong overload capacity makes the dryer drum run steadily and reliably.

Parameter

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
